Build Your Own Solar Phone Charger
Easy beginner project to charge phones with sunlight. Perfect for
camping, emergencies, or learning how solar systems work.
Time: ~1 hour
Estimated Cost: $35–$60
Materials & Tools
| Item | Description | Where to Find |
|---|---|---|
| 6 V – 10 W Solar Panel | Small portable panel with bare leads or USB output | Solar Panels & Components |
| 5 V USB Step-Down Converter | Converts panel/battery voltage to stable 5 V USB | DIY & Accessories |
| 18650 Battery + Holder | Rechargeable cell for stored power | Solar Components |
| Charge Controller Module | Safely manages charging & prevents overcharge | Solar Components |
| Wires, Alligator Clips, Fuse | Basic wiring and protection (1–2 A fuse recommended) | Accessories / Hardware |
| Small Enclosure Box | Holds electronics and USB port | Hardware store / Shop |
| Multimeter (optional) | To verify voltages and polarity | Tools / Shop |
Step-by-Step Instructions
-
Test the Solar Panel

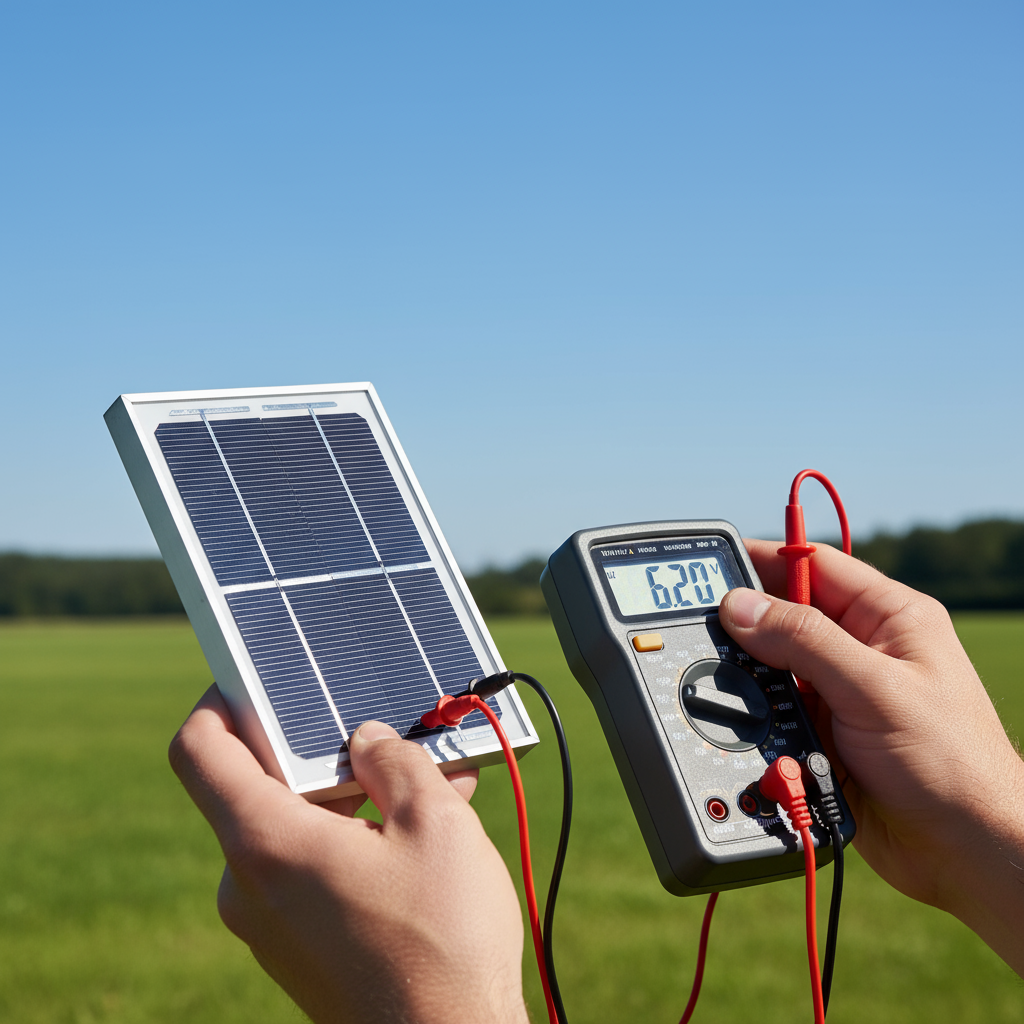

Place the panel in direct sunlight and measure the open-circuit voltage with a multimeter (expect ~6–7 V for a 6 V panel). Confirm output is steady. -
Connect the Panel to the Charge Controller
Identify the controller’s solar input terminals (usually labeled PV+ / PV–). Connect panel + to PV+ and panel – to PV–. Double-check polarity. -
Connect the Battery
Connect your 18650 battery (in its holder) to the controller’s battery terminals. Ensure correct polarity and that the controller supports your battery chemistry. -
Add the 5 V USB Converter
From the controller’s load output, wire the USB step-down converter. Verify the converter outputs ~5.0 V before plugging in any device. -
Assemble in the Enclosure
Mount components inside the box, route wires through small holes, and secure the USB port so it’s accessible. Add a small inline fuse on the USB output (1–2 A) for safety. -
Final Test
Place the panel in bright sun, plug a phone into the USB port, and confirm charging. On cloudy days the battery will provide stored power.
Recommended Wiring Diagram
Safety Tips
- Always confirm polarity before connecting batteries or loads.
- Use a fuse (1–2 A) on the output to protect against shorts.
- Keep the electronics dry and avoid working in wet conditions.
- If you're uncomfortable with batteries, use a USB power bank instead of direct battery wiring.
Try This Next
Upgrade ideas: Use a larger 20 W panel for faster charge, add an LED charge indicator, or build a weatherproof backpack mount. Related projects: Solar garden lights, portable solar lanterns, or a small 100 W off-grid starter kit.
